| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | SUNSHINING |
| Model Number: | SL-S001 |
| Minimum Order Quantity: | 100 pieces |
| Price: | $4.00/pieces 100-499 pieces |
| Packaging Details: | white box,1 piece per box then several boxes into one carton |
| Supply Ability: | 20000 Piece/Pieces per Month led light mirror touch sensor switch |
| Network: | SDK | Customized Support: | Software Reengineering |
|---|---|---|---|
| Max. Current: | 3 | Max. Voltage: | 12v / 24v Dc |
| Mechanical Life: | 3 Year | Number Of Switches: | 1 |
| AC Outlets Quantity: | 1 Outlets | USB Type-C Ports: | 0 |
| IP Level: | IP21 | WIFI: | NO |
| Product Name: | Touch Sensor Switch For Led Light | Application: | Lighting Products |
| Material: | Pc | Color: | White , Black |
| Voltage: | DC12-24V | MAX. Constant Current: | 3A |
| Port: | NingBo/Shanghai,Port,CHINA |

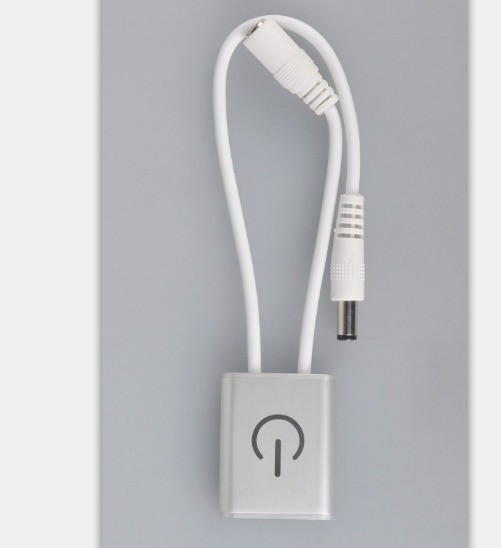

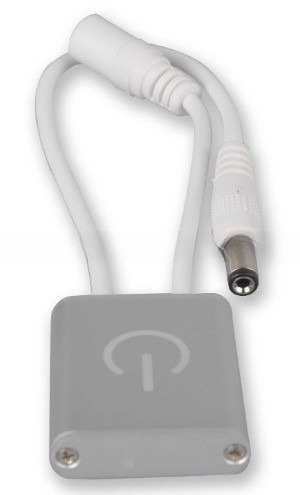

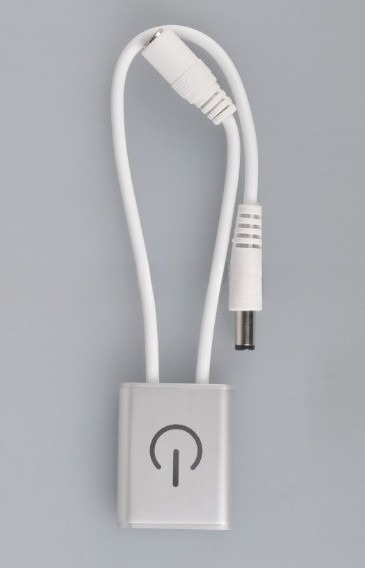

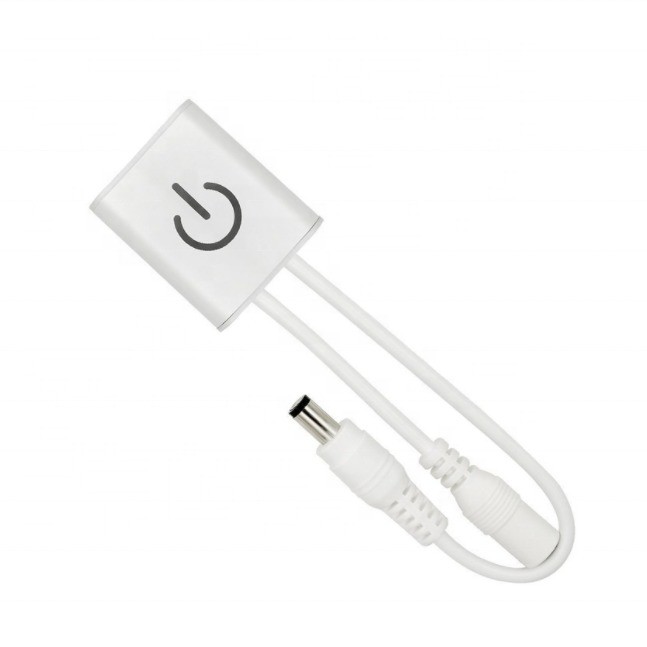

led light mirror touch sensor switch
SL-S001
Technical Data
| Dimension | 38*32*9mm |
| Sensor | Touch IR sensor |
| Input Voltage(V) | DC 12v /DC 24v |
| Load current Max | 3A |
| Connector | 5.5*2.1mm DC connector |
| Cable length | input cable 100mm,output cable200mm |
| Sensor distance | within 15cm |
Features:
Led dimmer, it adopts capacitance touch technique;switch and dimming function can be realized by touching. Dim DC12V/24V directly driven led lighting products, such as led cabinet light, led rigid bar, led strip and led panel light, it can also be used as on/off touch switch,During the dimming process, it donesn't flicker.
Instruction:
1. The finger touches dimmer metal body
2.The touch time is less than 5 second ,it is on/off switch function
3.The touch time is more than 5 second,it is dimming function, the brightness will be raise to highest or fallen to lowest.
Yuyao Sunshining Lighting Co.,Ltd. Is founded in May.6,2014.We are specializing in producing LED cabinet lights,LED Sensor lamps,LED reading and desk lamps and lamp components.We can also provide LED lighting solutions . These products are used for indoor lighting ,furniture and decoration engineering.We have own R&D team and development new products each month. Our products are well accepted and good reputation by all partners all over the world.Quality is all!
Welcome to cooperate with us for domestic and overseas friends.
